Navilock NL 8012U GPS ontvanger Zwart

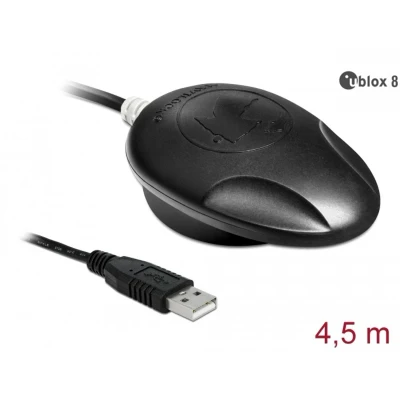

Description The USB 2.0 Multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. Specification • Connector: USB 2.0 Type-A male • Chipset: u-blox 8 UBX-M8030-KT • Frequency: GPS: L1, 1575.4200 MHz GLONASS: L1, 1602 (k x 0,5625) MHz BEIDOU COMPASS: B1, 1561.0980 MHz GALILEO: E1, 1575.4200 MHz QZSS: L1, 1575.4200 MHz • Accepts the signals of up to 72 satellites at the same time • Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS) • Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG • Auto Baud Rate up to 115200 bps • Update rate: single GNSS: 18 Hz (e.g. GPS solo) multi GNSS: 10 Hz (e.g. GPS+GLONASS) • Sensibility max. -167 dBm • IPX6 protection class • Magnetic, non-slip on the bottom • LED-indicator for GPS status • Operating temperature: -20 °C ~ 60 °C • Power supply: 5 V DC • Current consumption: max. 45 mA • Cold start in ca. 26 seconds • Hot start in ca. 1 second • Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS • Cable length: ca. 4.5 m • Dimensions (LxWxH): ca. 65 x 45 x 22 mm Microsoft Sensor and Location Platform (Website ()) • Profit from Windows applications (e.g. weather, maps, etc) • Supporting the GNSS location platform API (32 bit) System requirements • Windows Vista/7/8/8.1/10, Linux Kernel 2.6 • PC or laptop with a free USB Type-A port • For devices with OTG function and optional OTG adapter: Windows 10 Package content • USB 2.0 receiver • Navilock support CD incl. driver and user manual

De USB 2.0 Multi GNSS-ontvanger met de u-blox 8 SuperSense chipset heeft een ingebouwde actieve antenne. In combinatie met een notebook en de bijbehorende navigatiesoftware, is navigeren mogelijk....
