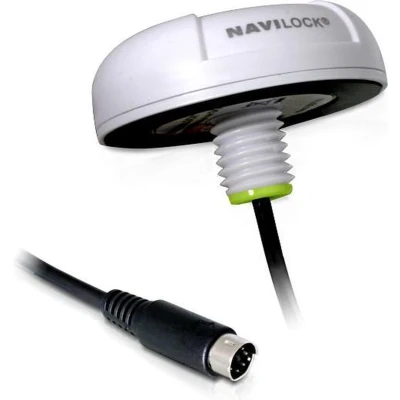

Navilock NL 622MP GPS ontvanger Wit

Description The GPS receiver with u-blox 6 SuperSence® chipset can receive WAAS and EGNOS data besides GPS. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-622MP GPS receiver is especially designed for installation on a white ground (boat, camper, bus etc.) It is unremarkable and fits into the vehicle concept due to its housing design. Specification • u-blox 6 GPS SuperSense® high performance chipset• GPS receiver with MD6 Navilock plug (USB or serial cable are optional available)• Internal patch antenna• Central fastening screw thread with cable leading from the middle• Frequency: L1, 1575.42 MHz, C/A Code: 1.023 MHz• Accepts the signals of up to 50 satellites at the same time• Supports AssistNow Offline (14 days Almanac data), AGPS, WAAS, EGNOS, MSAS, NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG• Baud rate: 9600 (up to 115200)• Update rate: up to 5 Hz• Sensibility max. –162 dBm• Water-proof housing (IPX7)• Operating temperature: -20°C ~ 60°C• Cold start in about 25 sec.• Hot start in about 1 sec.• Cable length: 5 m• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS• Dimension: 62 mm x 21 mm System requirements • Linux ex Kernel 2.6, Mac, Windows 98SE/ME/2000/XP/Vista/7/8, Windows Mobile 2003/5/6, Android ex V2.1• MD6 connection cable Package content • NL-622MP receiver• Installation material• CD ROM

Navilock Navilock NL-622MP - Module GPS-ontvanger
