Delock LTE antenne MHF/U.FL LP 068 (WiFi, GSM), Netwerkantenne

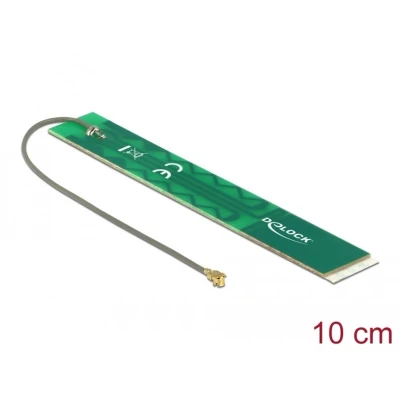

Description This LTE antenna by Delock allows the usage of different LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, LoRa, NB-IoT, ISM, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave. Specification • Connector: 1 x I-PEX Inc., MHF® I plug • Frequency range: 690 - 960 MHz 1710 - 2700 MHz • GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2,4 GHz, Bluetooth, ISM, DECT, LoRa • Antenna gain: 2 - 3 dBi • Impedance: 50 Ohm • VSWR: 1.5 • Mounting type: self adhesive • Operating temperature: -10 °C ~ 55 °C • Cable type: coaxial • Cable type: 1.13 • Cable colour: grey • Cable diameter: ca. 1.13 mm • Cable attenuation: 3.2 dB @ 2.4 GHz per meter • Smallest bending radius: 4.5 mm • Length incl. connectors (L): ca. 10 cm • Dimensions (LxWxH): ca. 96.0 x 14.0 x 0.9 mm System requirements • Device with one free I-PEX Inc., MHF® I port Package content • Antenna

Andere computeraccessoires niet opgegeven Delock LTE Antenna MHF/U.FL-LP-068 - Antenne - Smart Home - 3 dBi - omnidirectioneel
