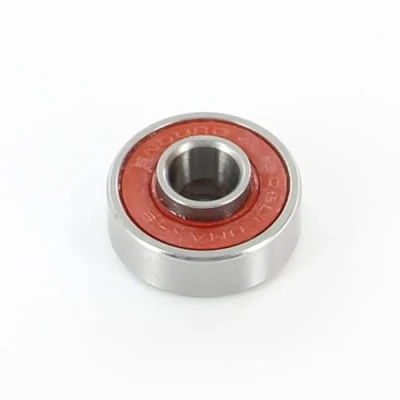

608 LLU MAX EE ABEC 3 (Radial) 8x22x7/10 (1mm/2mm)

Bol Partner

608 LLU MAX-EE MAX-Design, Extended Inner Race, ABEC-3, radial suspension bearing - (CN Clearance) - 8mm x 12mm x 7/10mm (1mm/2mm) - Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing features a double-extended inner race that eliminates the need for extra spacers to connect suspension linkages. The primary use for this bearing is as a suspension pivot bearing. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements. Static load - 483lbf / 2.18kN - Weight - 12.7g -

Amazon

De Enduro-kogellagers zijn speciaal ontwikkeld voor de vering, die bijna 20 jaar geleden de voorloper van de kogellagers van het type MAX. Deze lagers hebben een draagvermogen van 35 tot 40% dan bij standaard radiaalladers. De LLU-afdichtingen bieden maximale bescherming tegen de elementen, terwijl de vulling voor 90% vet behoudt. Afmeting: 8x22x7/1-2/10
