RIEGLER

REDUCEERVENTIEL 1/8 0.5 10 BAR

Name: REDUCEERVENTIEL 1/8 0.5 10 BAR
Brand: RIEGLER
SKU: 03266e899bed8aef403757f8c488e9b3

1/1

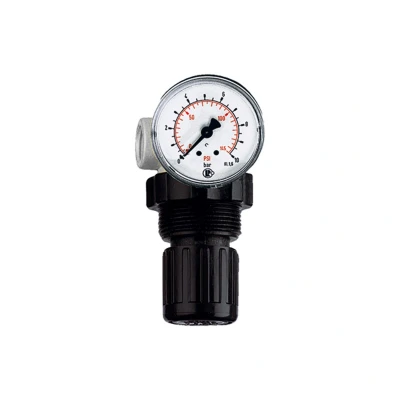

Afbeelding van REDUCEERVENTIEL 1/8 0.5 10 BAR

Amazon

Prijzen vanaf

33,40

Uitgelicht

	33,40	Naar shop
	33,40	Naar shop
VERGELIJK ALLE AANBIEDERS (3)

Beschrijving

K&W Tools REDUCEERVENTIEL 1/8 0.5-10 BAR Thread G 1/8 Size 0 Max. input pressure 25 bar Housing die-cast zinc, painted silver Sealant Elastollan/TPU Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 450 l/min Min. control range 0.5 bar Max. control range 10 bar Pressure gauge display min. 0 bar Pressure gauge display max. 16 bar DN 5 A 43.0 mm B 72.5 mm C 9.5 mm D 63.0 mm Series Standard-mini Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin DE Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name EASY Spring bonnet POM

Lees meer

Vergelijk aanbieders (3)

Sorteren op:

€ 33,40 Gratis verzending

€ 49,17 € 5,95 verzendkosten Totaal € 55,12

Beschrijving (1)

REDUCEERVENTIEL 1/8 0.5-10 BAR Thread G 1/8 Size 0 Max. input pressure 25 bar Housing die-cast zinc, painted silver Sealant Elastollan/TPU Min. medium temperature -10 °C Max. medium temperature 60 °C Min. ambient temperature -10 °C Max. ambient temperature 60 °C Flow rate 450 l/min Min. control range 0.5 bar Max. control range 10 bar Pressure gauge display min. 0 bar Pressure gauge display max. 16 bar DN 5 A 43.0 mm B 72.5 mm C 9.5 mm D 63.0 mm Series Standard-mini Flow rate measurement at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar Country of origin DE Customs tariff number 84811099 REACH SVHC1 substance name Lead CAS no. SVHC 1 7439-92-1 RoHS materials notice Rohs compliant REACH Info contains SVHC substance Class name EASY Spring bonnet POM

Lees meer
