Media Converter 10GBase R SFP+ tot

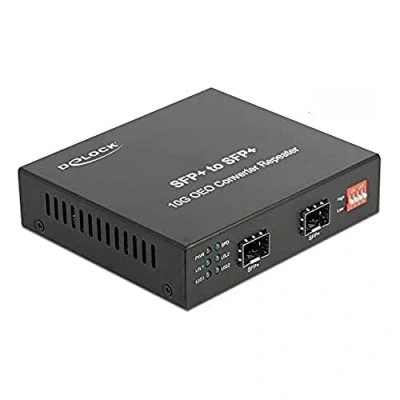

Description This 10 Gigabit Ethernet Media converter by Delock can be used to connect different optical media. For example, Multi-mode fiber can be converted to Single-mode fiber. In the SFP slots, various optional 10 Gbps SFP+ modules by Delock can be used. Specification • Connectors: 2 x SFP slot for 10GBase-R SFP+ module (SFP module not included) • Data transfer rate up to 10 Gbps • IEEE 802.3ae compliant • 6 LEDs for status monitoring • Power consumption: max. 4 W • Operating temperature: -20 °C ~ 60 °C • Metal housing • Fanless • Dimensions (LxWxH): ca. 110 x 95 x 26 mm Power supply specification • Wall power supply • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A • Output: 12 V / 1 A • Ground outside, plus inside • Dimensions: inside: ø ca. 2.1 mm outside: ø ca. 5.5 mm length: ca. 9.5 mm System requirements • 10GBase-R SFP+ module Package content • Media converter • Power supply • User manual

Aansluitingen: 2x SFP voor 10GBase-R SFP+ module (SFP niet inbegrepen) Afmetingen (l x b x h): ca. 110 x 95 x 26 mm Gegevensoverdrachtssnelheid tot 10 Gbps Compatibel met IEEE 802.3ae 6 leds voor statuscontrole
