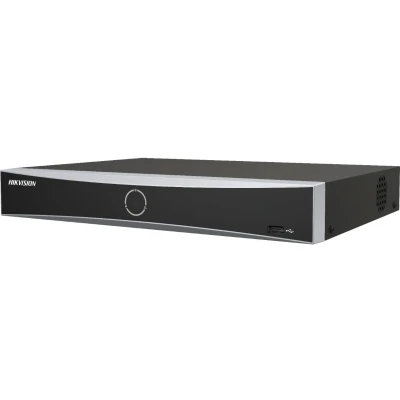

HIKVISION DS 7604NXI K1/4P 4 kanaals Netwerk videorecorder

Model: Hikvision DS-7604NXI-K1/4P4-ch PoE 1U K Series AcuSense 4K NVRFeaturesUp to 4-ch IP camera inputs, plug & play with 4 power-over-Ethernet (PoE) interfacesH.265+/H.265/H.264+/H.264 video formatsUp to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacityUp to 40 Mbps incoming bandwidthAdopt Hikvision Acusense technology to minimize manual effort and security costsSpecificationsFacial RecognitionFacial Detection And Analytics: Face picture comparison, human face capture, face picture searchFace Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)Facial Detection And Analytics Performance: 1-ch human face captureFace Picture Comparison: 2-ch face picture comparison alarmMotion Detection 2.0Human/Vehicle Analysis: 4-chVideo And AudioIP Video Input: 4-chIncoming Bandwidth:40 MbpsOutgoing Bandwidth:80 MbpsHDMI Output:1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 HzVGA Output:1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 HzVideo Output Mode: HDMI1/VGA simultaneous outputCVBS Output: N/AAudio Output: 1-ch, RCA (Linear, 1 KΩ)Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)DecodingDecoding Format: H.265/H.265+/H.264+/H.264Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIFSynchronous Playback: 4-chDecoding Capability:AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)Stream Type: Video, Video & AudioAudio Compression: G.711ulaw/G.711alaw/G.722/G.726/AACNetworkRemote Connection: 128Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPSNetwork Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfacePoE: Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interfacePower≤ 50 WStandard: IEEE 802.3af/atAuxiliary InterfaceSATA: 1 SATA interfaceCapacity: Up to 10 TB capacity for each HDDUSB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0Alarm In/Out: N/A (4/1 is optional)GeneralPower Supply: 48 VDC, 1.35 AConsumption: ≤ 10 W (without HDD and PoE off)Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)Working Humidity: 10% to 90%Dimension (W × D × H): 320 mm × 240 mm × 48 mm (12.6× 9.4 × 1.9) - ≤ 1 kg (without HDD, 2.2 lb.)Certification: FCCPart 15 Subpart B, ANSI C63.4-2014CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
