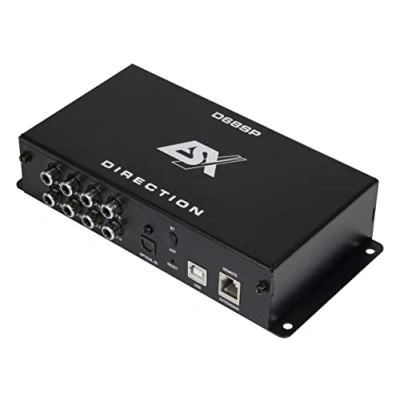

ESX Direction D68SP DSP processor 6 kanaals met 8 uitgang

Bol Partner

ESX Direction D68SP Condition: New Sale type: BTW/21% Warranty: Factory warranty Productinfo: 6 x RCA/ RCA input, balanced 6 x high level input (via Molex connector) 1 x Optical stereo, S/PDIF 192 kHz, 24 bit 1 x USB type B for PC software 1 x RJ45 for remote control/extension 1 x power input incl. REM OUT and MODE switch input 8 x RCA/RCA @ 6 V RMS 105 x 40 x 185 mm DSP chip from Analog Devices™ 32 bit, 294 MHz, Full HD Audio 96 kHz. Signal converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit HP/LP/BP @ 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps. Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps) Input mixer, subwoofer control, preset auto switch, priority input mode Input sensitivity: low level 1~6 V/RMS, high level 1~15 or 15~45 V/RMS Signal to Noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB Optical S/PDIF input S/PDIF 192 kHz, 24 bit Distortion factor: Analog input

Amazon

DSP-chip, 32-bits, 294 MHz, Full HD-audio, 96 kHz, AKM Velvet Sound A/D signaal-converter, 32-bits, D/A 32-bits HP/LP/BP @ 6-48 dB, fasevertraging, bedrijfstijdcorrectie 0 ~ 20 ms / 0,01 ms staplengte tot 248 ms EQ. s, 12 0Equalizer-ingangen (PQ/HSLF/LSLF) +/- 12 dB, 0,5 dB), ingangsmixer, subwooferregelaar, voorgeprogrammeerde automatische schakelaar, prioriteitsingangsmodus
