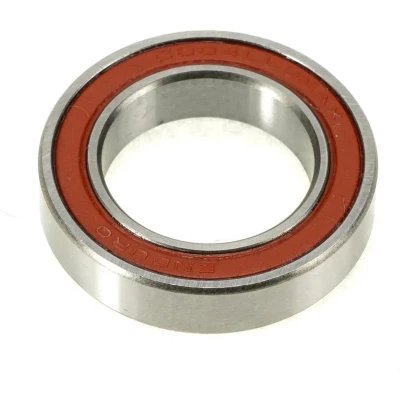

Enduro LAGER 6804 LLU 20x32x7 ABEC 3 MAX

6804 LLU MAX - MAX-Design, ABEC-3, radial suspension bearing - - 20mm x 32mm x 7mm - Enduro Bearings pioneered MAX type bearings almost 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings providing greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Orbea and canta Cruz. The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements. Static load - 897lbf / 3.99kN Weight - 18.45g -

De enduro-kogellagers zijn speciaal ontwikkeld voor de vering, die bijna 20 jaar geleden de voorruiters van de kogellagers van het type MAX. Deze lagers hebben een draagvermogen van 35 tot 40% hoger dan bij standaard radiale laders. De LLU-afdichtingen bieden maximale bescherming tegen de elementen, terwijl de vulling 90% vet behoudt. Afmeting: 20 x 32 x 7 - SC
