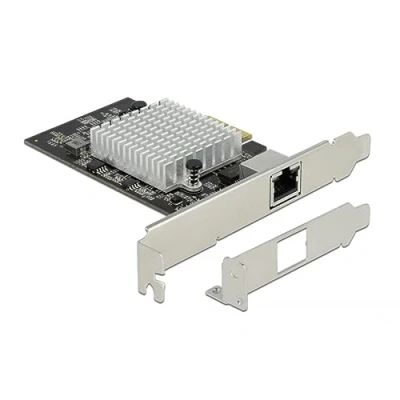

DeLOCK PCIe x2 Card 1x RJ45 10 Gigabit LAN AQC113CS

Description This PCI Express card by Delock offers a network port with a data transfer rate up to 10 Gbps over conventional Cat.6 or Cat.6A copper cables. With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows higher transmission rates than 1 Gbps, when a 10 Gbps connection is not possible with the existing cable. Specification • Connectors: external: 1 x 10 Gigabit LAN RJ45 jack internal: 1 x PCI Express x2, V3.0 • Chipset: Marvell AQC113CS • Data transfer rate: Ethernet up to 10 Mbps Fast Ethernet up to 100 Mbps Gigabit Ethernet up to 1 Gbps NBASE-T with up to 2.5 Gbps and 5 Gbps 10 Gigabit Ethernet up to 10 Gbps PCI Express x2 up to 16 Gbps • Supports IEEE 802.3az (Energy Efficient Ethernet) • Supports 16k Jumbo Frames • Supports IEEE 802.1Q Virtual LAN (VLAN) • Supports PXE • LED indicator for link and activity System requirements • Linux Kernel 3.10 or above • Windows 8.1/8.1-64/10/10-64 • PC with one free PCI Express x2 / x4 / x8 / x16 / x32 slot Package content • PCI Express card • Low profile bracket • Driver CD • User manual
