Delock PCIe x1 > 2 x M.2 Key B, Storage controller

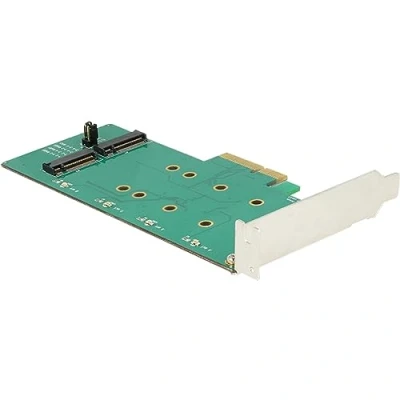

Description This PCI Express card by Delock expands the PC by two M.2 slots. It can be connected up to two M.2 SATA modules in format 22110, 2280, 2260, 2242, 2230 to the card. When using more than one SSD, there is the possibility to use different RAID level. Specification • Connector: internal: 2 x 67 pin M.2 key B slot 1 x PCI Express x4 • Interface: SATA • Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA • Maximum height of the components on the module: 1.5 mm application of double-sided assembled modules supported • Data transfer rate up to 6 Gb/s • Supports RAID 0, 1, SPAN • 4 x LED indicator • Bootable System requirements • Windows 7/7-64/8.1/8.1-64/10/10-64, Linux Kernel 3.3 • PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card • Low profile bracket • 2 x fixing screw • User manual

Adapters Delock Delock PCI Express Card > 2 x internal M.2 Key B with RAID - Controller voor opslag - M.2 Card - laag profiel - RAID RAID 0, 1 - PCIe 2.0 x4
