Delock M.2 PCI Express x1 Adapter NVMe SSD

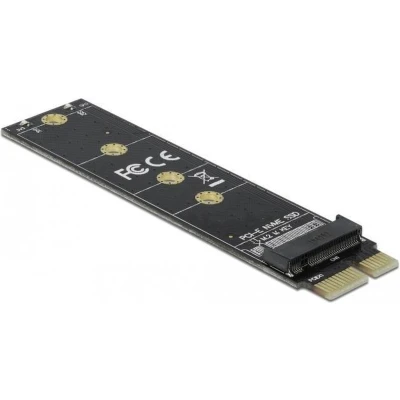

Description This adapter by Delock enables the connection of an M.2 SSD in 2280, 2260, 2242 and 2230 format. The data transmission occurs directly via the PCI Express slot. Ideal test equipment Due to the PCIe male connector and the direct installation of the SSD on the board, without enclosure, the Delock adapter is most suitable as test equipment. Specification • Connectors: 1 x PCI Express x1, V4.0 1 x 67 pin M.2 key M slot • Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe (NVMe) • Maximum height of the components on the module: 1.5 mm, application of double- sided assembled modules supported • Supports NVM Express (NVMe) • 2 x LED indicator for power and activity • Bootable • Dimensions (LxWxH): ca. 100 x 24 x 6 mm • Plug & Play System requirements • Linux Kernel 4.6.4 or above • Windows 8.1/8.1-64/10/10-64/11 • PC with one free PCI Express slot Package content • Adapter M.2 • 1 x thermal conductive pad • M.2 mounting material • Screwdriver • User manual

Deze adapter van Delock maakt de aansluiting van een M.2 SSD in 2280, 2260, 2242 en 2230 formaat mogelijk . De gegevensoverdracht vindt rechtstreeks plaats via het PCI Express-slot.Delock 64105. Input: PCIe Output: M.2 NVMeUitbreidingskaartstandaard: PCIe 4.0LED-indicatoren: Activiteit, StroomLand van herkomst: China. Ondersteuning Windows: Windows 10, Windows 7, Windows 8.1Ondersteuning Linux: Linux Kernel 4.6.4 of hogerAfmetingen: B24 x D100 x H6 mmType verpakking: DoosPakketinhoud • Adapter M.2• 1 x warmtegeleidende pad• M.2 montagemateriaal• Schroevendraaier• Gebruikershandleiding
