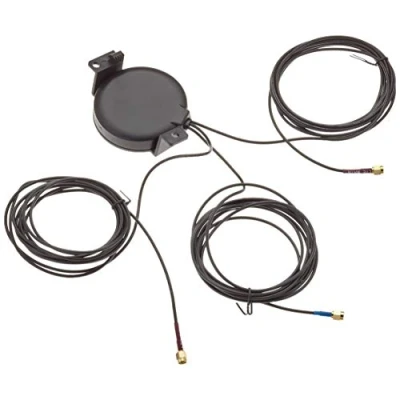

DeLOCK LTE MIMO GNSS Antenne 3 x SMA RG 174 m

Description This antenna by Delock allows the usage of different LTE and GNSS bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, GNSS, Bluetooth, ISM, MIMO and LoRa 868 MHz / 915 MHz. Specification • Connectors: 3 x SMA plug • 2 x LTE: Frequency range: 698 MHz - 960 MHz 1710 MHz - 2690 MHz Impedance: 50 Ohm VSWR: 3.0 Antenna gain: 2.0 - 2.5 dBi Polarisation: linear • GNSS: Frequency range: GALILEO: E1, 1575.4200 MHz GPS: L1, 1575.4200 MHz Antenna gain: 2 dBi VSWR: 1.5 Impedance: 50 Ohm Polarisation: RHCP • LNA GNSS: Frequency range: GALILEO: E1, 1575.4200 MHz GPS: L1, 1575.4200 MHz Antenna gain: 28 dBi Operating voltage: 2.2 - 5.0 V Current consumption: 5 - 15 mA VSWR: 2.0 Impedance: 50 Ohm • Mounting type: screw mounting • Operating temperature: -40 °C ~ 85 °C • Housing material: ABS • Protection class: IP67 • Colour: black • Cable type: coaxial • Cable type: RG-174 • Cable colour: black • Cable diameter: ca. 2.7 mm • Cable attenuation: 1.5 dB @ 1.5 GHz per meter • Smallest bending radius: 10.5 mm • Cable length incl. connector: ca. 3 m • Dimensions (Ø x H): ca. 81.3 x 16.3 mm System requirements • Device with multiple free SMA ports Package content • Antenna

Delock LTE MIMO GNSS Antenne 3 x SMA stekker RG-174 3 m Buitenschroefmontage Zwart Afmetingen artikelverpakking: 5,4 L x 24,0 H x 15,9 W (centimeter) 0 stuks
