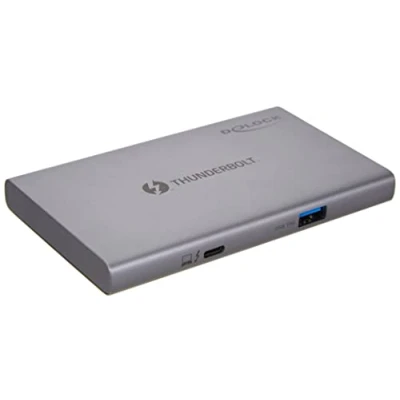

Delock Docking station Thunderbolt 4 (Thunderbolt, 5 Havens), + USB hub, Grijs

Description This solid Thunderbolt™ 4 hub by Delock with metal housing can be connected to a computer or laptop via the Thunderbolt™ interface. It expands the computer by three Thunderbolt™ 4 ports and one SuperSpeed USB Type-A port. Certified Thunderbolt™ 4 hub There are three complete Thunderbolts™ 4 ports ready to transfer up to 40 Gbps data. In addition, two 4K monitors or one 8K monitor can be connected, as the Thunderbolt™ port supports DP Alternate Mode. All USB-C™ devices can also be connected. Additional USB Type-A port The USB Type-A port supports data transmission up to 10 Gbps. Various USB devices, such as USB memory or external hard drives, can be connected. USB Power Delivery and dynamic power distribution with max. 85 watts The included power supply supplies the hub, the devices connected to the hub and the host device with power, maximum 85 watts. There is a dynamic distribution of power. This means that the laptop can be charged with a maximum of 60 watts and then 25 watts are available for the hub. If the laptop requires less power to charge, there is correspondingly more power available for the hub, but a maximum of 54.5 watts. Each of the three downstream Thunderbolt™ ports offers a maximum power of 15 watts, while the USB Type-A port offers max. 4.5 watts. Note Only one additional external monitor can be connected to MacBook devices with M1 chipset. Specification • Connectors: 1 x Thunderbolt™ 4 female > 3 x Thunderbolt™ 4 female 1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female 1 x 20 V DC jack • Data transfer rate up to: Thunderbolt™ 4 40 Gbps, Thunderbolt™ 3 40 Gbps, USB4™ 40 Gbps, SuperSpeed USB 10 Gbps, SuperSpeed USB 5 Gbps, Hi-Speed 480 Mbps, Full-Speed 12 Mbps, Low-Speed 1.5 Mbps • Resolution up to 7680 x 4320 @ 30 Hz (depending on the system and the connected hardware) • Power supply: Self-powered • Electrical power: Thunderbolt™: max. 15 watt (5 V / 3 A) USB Type-A: max. 4.5 watt (5 V / 0.9 A) • Robust metal housing • Colour: grey • Plug & Play • Dimensions (LxWxH): ca. 124 x 74 x 13 mm Power supply specification • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A • Output: 20 V / 5 A • Ground outside, plus inside • Dimensions: inside: ø ca. 2.5 mm outside: ø ca. 5.5 mm length: ca. 10 mm System requirements • Linux Kernel 5.8 or above • Mac OS 11.2.3 or above • Windows 8.1/8.1-64/10/10-64 • PC or laptop with a free Thunderbolt™ 4 port Package content • Thunderbolt™ 4 hub • Thunderbolt™ 4 cable, length ca. 80 cm • External power supply • User manual

Thunderbolt 4 Hub Er zijn drie complete Thunderbolt 4 aansluitingen, waarmee gegevens tot 40 Gbps kunnen worden overgedragen. Bovendien kunnen twee 4K-monitoren of een 8K-monitor worden aangesloten, omdat de Thunderbolt-aansluiting de DP Alternate-modus ondersteunt. Bovendien kunnen alle USB-C-apparaten ook worden aangesloten. Extra USB Type-A stekker - de USB Type-A aansluiting ondersteunt gegevensoverdracht tot 10 Gbps / s. Hij kan met verschillende USB-apparaten zoals USB-sticks of externe harde schijf worden gebruikt. USB Power Delivery en dynamische vermogensverdeling met max. 85 watt. De meegeleverde voeding voorziet de hub, de apparaten die op de hub zijn aangesloten en het hostapparaat met maximale stroomsterkte 85 W. Het heeft een dynamische vermogensverdeling. Dit betekent dat de laptop met een maximaal vermogen van 60 watt kan worden opgeladen en de hub over 25 watt beschikt.
