Beschrijving
Onlinekabelshop

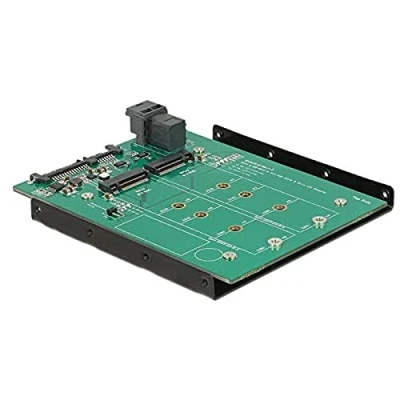

Description This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format with key B and a M.2 SSD in 2280, 2260, 2242 and 2230 format with key M. It allows the possibility to connect a M.2 SSD based on PCIe and M.2 SSD based on SATA at the same time. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the SFF-8643 interface while using a PCIe M.2 SSD.
Specification • Connectors:
1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs)
1 x 36 pin SFF-8643 female (for PCIe SSDs 2 or 4 lanes)
1 x 67 pin M.2 key M slot (PCIe SSD)
1 x 67 pin M.2 key B slot (SATA SSD)
• Interface: SATA / PCIe (2 or 4 lanes)
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe or SATA
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• SATA 15 pin power connector always necessary
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A (PCIe) and 3 A (SATA)
System requirements • Linux Kernel 3.16 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free SATA 22 pin interface
• A free SFF-8643 interface (PCIe SSD)
Package content
• 3.5″ converter
• Mounting material
• User manual
Beschrijving
(3)
Description This Delock converter enables the connection of a M.2 SSD in 2280, 2260, 2242 and 2230 format with key B and a M.2 SSD in 2280, 2260, 2242 and 2230 format with key M. It allows the possibility to connect a M.2 SSD based on PCIe and M.2 SSD based on SATA at the same time. The converter can be installed into your system internally through the SATA 22 pin interface while using a SATA M.2 SSD, or via the SFF-8643 interface while using a PCIe M.2 SSD. Specification • Connectors: 1 x SATA 6 Gb/s 22 pin plug (for SATA SSDs) 1 x 36 pin SFF-8643 female (for PCIe SSDs 2 or 4 lanes) 1 x 67 pin M.2 key M slot (PCIe SSD) 1 x 67 pin M.2 key B slot (SATA SSD) • Interface: SATA / PCIe (2 or 4 lanes) • Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe or SATA • Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported • SATA 15 pin power connector always necessary • LEDs for power and activity • Supports NVM Express (NVMe) • Maximum output current: 4 A (PCIe) and 3 A (SATA) System requirements • Linux Kernel 3.16 or above • Windows 7/7-64/8.1/8.1-64/10/10-64/11 • A free SATA 22 pin interface • A free SFF-8643 interface (PCIe SSD) Package content • 3.5″ converter • Mounting material • User manual
AmazonAansluitingen: 1x SATA 6Gb/s 22pin (voor SATA-SSD) 1x 36pin SFF-8643 bus (voor PCIe 2 of 4 Lan SSD) 1x 67pin M.2 Key M slot (PCIe SSD) 1x 67pin M.2 Key B slot (SATA SSD) Interface: SATA/PCIe (2 of 4 weg) Compatibel met M.2-modules in 2280, 2260, 2242 en 2230 met Key M of Key B+M op PCIe basis of SATA basis Maximale bouwhoogte van de module 1,5 mm - mogelijkheid voor het gebruik van dubbelzijdige modules 15-polige SATA-stekker is altijd vereist Ondersteunt NVM Express (NVMe) Maximale uitgangsstroom: 4 A (PCIe) en 3 A (SATA)
FnacHarde schijf-accessoires niet opgegeven Delock Converter SATA 22 pin / SFF-8643 NVMe > 1 x M.2 NGFF Key M + 1 x M.2 NGFF Key B - Storage bay adapter - 3.5" to 2 x M.2/ SFF
