DELOCK 95244, Mini PCI Express, Serie, 2.0, RS 232, Windows 7 Enterprise x64, Home Basic x64,... Interfacekaarten/ adapters 95244

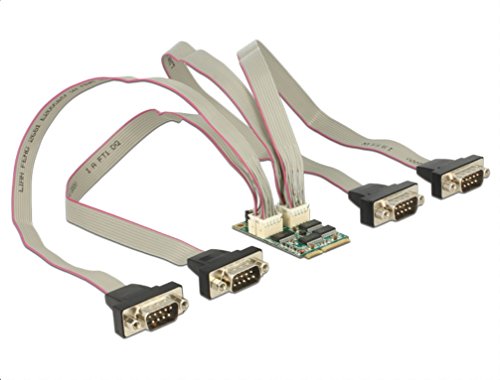

Description This MiniPCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter. Specification • Connector: on the module: 4 x 10 pin pin header male on the slot bracket (standard) 2 x: 2 x serial RS-232 DB9 male with screw nuts or on the slot bracket (low profile) 4 x: 1 x serial RS-232 DB9 male with screw nuts • Chipset: Exar XR17V354 • Form factor: MiniPCIe full size • Interface: PCI Express version 2.0 • Data transfer rate up to 921.6 Kb/s • Selectable voltage supply 5 V / 12 V or RI • Compatible with 16C550 UART • Datenbits: 5, 6, 7, 8 • Signals:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI • Operating Temperature: -30 ~ 75℃ • Storage Temperature: -40 ~ 85 • Cable length: ca. 30 cm (incl. connector) • Relative humidity: 0 - 95 % (non condensing) • Cable length incl. connectors: ca. 30 cm System requirements • Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64/11, Linux Kernel 2.6 • Mainboard with a free MiniPCIe slot with a PCIe interface Package content • MiniPCIe module • 4 x serial connection cable (pin header > DB9) • Power cable • 2 x standard slot bracket with two DB9 ports • 4 x low profile slot bracket with one DB9 port • Driver CD • User manual
