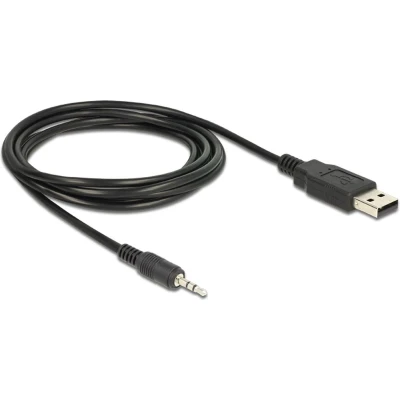

DeLOCK 1.8m USB 2.0 A/2.5mm Zwart

Description This USB TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It can be used for e.g. level converter, GPS-modules, interface controller, micro controller etc. Specification • Connector: USB 2.0 type A male Serial-TTL male > 2.5 mm 3 pin stereo jack male • Pin assignment: 1. GND 2. TXD 3. RXD • Chipset: FTDI 232RL • Cable gauge: 26 AWG • Temperature range: -20°C to +80°C • No-load current: 70 uA • Converter: 5 V / 15 mA (VCC, GND) • Compatible to UHCI / OHCI / EHCI controller • LVTTL 3.3 V (data) / 4 mA or HighLevel 12 mA • Data transfer rate up to 3 Mbps • Databit: 7 or 8 • Stoppbits: 1 or 2 • Parity: none, space, even, odd, mark • Flow control: software XON/XOFF or hardware RTS / CTS • FIFO: 128 Byte – RX 256 Byte – TX • Cable length: ca. 1.80 m System requirements • Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11, Windows CE 4.2, 5.0, 6.0, Mac OS 10.5, 10.6, Mac OS ex 10.9, Linux Kernel ex 2.6 • PC or laptop with a free USB type A port Package content • USB TTL cable • Driver CD • User manual

Andere accessoires draadloos netwerk niet opgegeven Delock Cable USB TTL male > 2.5 mm 3 pin stereo jack male 1.8 m (3.3 V) - Seriële adapter - USB - serieel
