Crimpzange mit Abisolierer und Netzwerktester

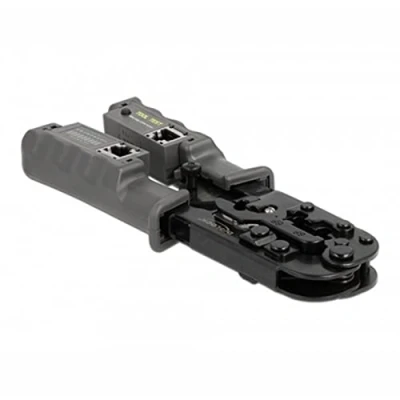

Description The multifunctional plier is suitable for crimping, stripping and cutting 8P (RJ45), 6P (RJ12/11) or 4P (RJ10) plugs and cables. Three integrated blades ensure trouble-free stripping of the cables and cutting of the strands. Integrated cable tester Thanks to the integrated cable tester, the correct wiring can be tested directly after the crimping process. All three types of plugs fit into the female sockets. LED test run Each connector type has its own pin arrangement. The white number arrangement (1 - 8 +G) is used to test the RJ45 pin assignment. The yellow number row (1 - 6) stands for RJ11 and the green (1 - 4) for the RJ10 plug. During the test, the red LEDs run through the respective pinout. For example, if the RJ10 plug is tested, the red LED starts with green 1. Note The plier has a locking mechanism to prevent unintentional closing or opening. Five clearly audible locking points signal this mechanism. After the fifth, the pliers open again when the handles are pressed together. With the help of the screw attached to the handle, opening can be done at any time. Network tester The battery compartment is built into the handles of the pliers. 3 x LR44 batteries are needed, which are not included in the package content. Specification • Metal pliers with plastic handles and lock • Built-in cutter and stripper • Connectors suitable for crimping: e.g. RJ45, RJ12, RJ11, RJ10 • Colour: grey / black • Weight: ca. 358 g • Dimensions (LxWxH): ca. 19.0 x 6.9 x 2.2 cm System requirements • Battery: 3 x LR44 • Connectors suitable for crimping Package content • Crimping tool • 1 x replacement blade set

Delock Krimptang met stripper en netwerktester
